# Decoupled authentication flow

With decoupled authentication the bank carries out an additional form of authentication external to the API integration. This model allows for a number of solutions, for example allowing a user to use their mobile phone to authenticate, or using biometrics for authentication, through a separate terminal, such as a point of sale (POS) device.

See the [Token.io API reference](../../api/reference) for details of the following endpoints used in this integration flow:

- [GET /v2/banks](../../api/reference/Banks-v2#operation/GetBanksv2)
- [POST /v2/payments](../../api/reference/Payments-v2#operation/InitiatePayment)
- [POST v2/payments/{paymentId}/embedded-auth](../../api/reference/Payments-v2#operation/ProvideEmbeddedFields)

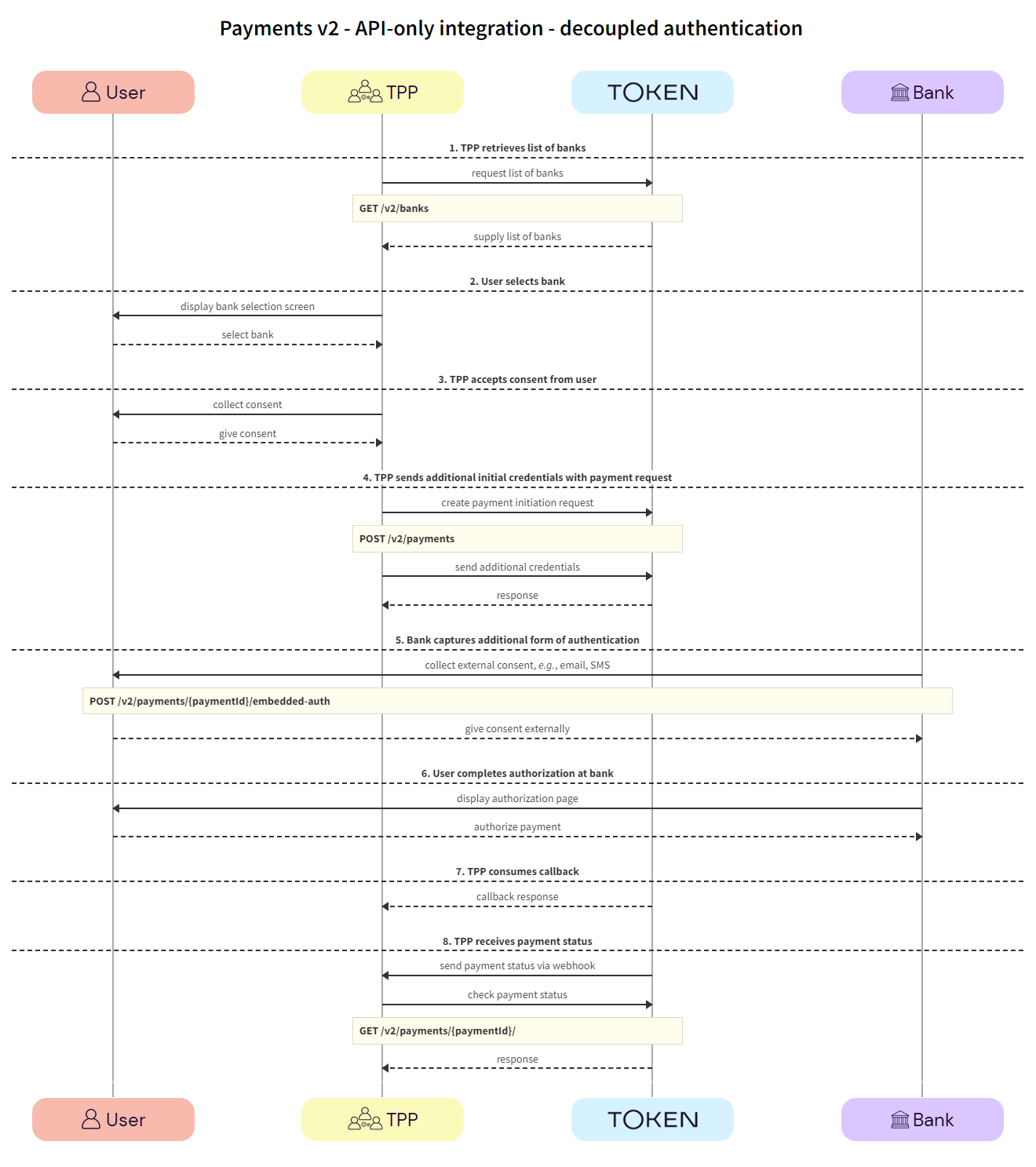

Click the image on the right to view a simplified swim lane diagram of the integration flow.

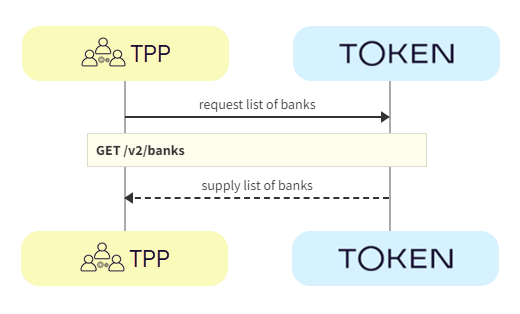

### 1.  TPP retrieves list of banks

TPPs retrieve the list of available banks using the [GET /v2/banks](../../api/reference/Banks-v2#operation/GetBanksv2) call.

We recommend that this step is performed once daily, outside any payment initiation, *e.g*., at 11pm UTC, and that the result is cached.

In the [GET /v2/banks](../../api/reference/Banks-v2#operation/GetBanksv2) request, there are numerous filtering criteria you can add as parameters to narrow your query. As a minimum, you should filter by your member ID.

See [Mandatory fields](./sip-v2-bank-selection#mandatory-fields) for information on which fields must be provided for a given bank to accept a payment initiation request.

a.  **TPP -> Token.io** - The TPP requests the list of banks from Token.io.

b.  **Token.io -> TPP** - Token.io supplies the list of banks to the TPP.

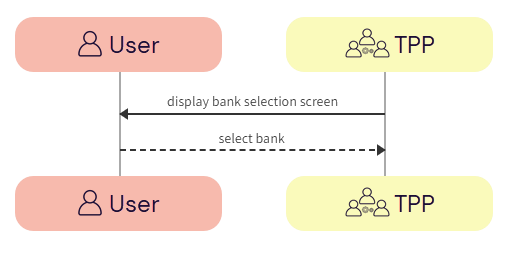

### 2.  User selects bank

The user selects the bank.

a.  **TPP -> User** - The TPP displays the bank selection screen.

b.  **User -> TPP** - The user selects the bank.

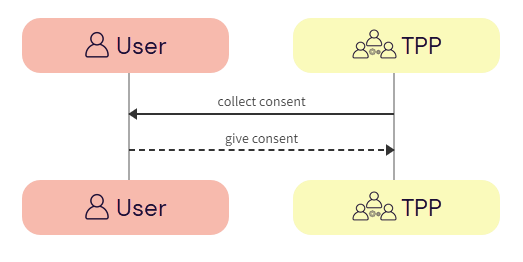

### 3.  TPP accepts consent from user

The TPP accepts consent from the user. For more information see [User consent collection](../../integration-considerations/user-consent-collection).

a.  **TPP -> User** - The TPP initiates consent acceptance from the user.

b.  **User -> TPP** - The user gives consent to the TPP.

The TPP may need to capture additional [mandatory fields](./sip-v2-bank-selection#mandatory-fields) and initial credential information from the user for successful authentication and authorization with the bank.

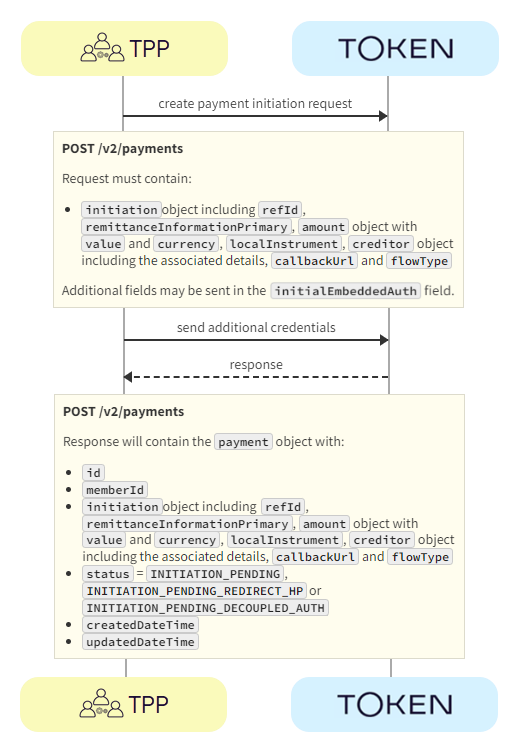

### 4.  TPP sends initial user credentials with payment request

The TPP sends the additional credentials captured in the [GET /v2/banks](../../api/reference/Banks-v2#operation/GetBanksv2) call with the [POST /v2/payments](../../api/reference/Payments-v2#operation/InitiatePayment) call.

a.  **TPP -> Token.io** - The TPP creates the payment initiation request using the [POST /v2/payments](../../api/reference/Payments-v2#operation/InitiatePayment) call.

If you're using Settlement accounts and you're an unregulated TPP, you'll always need to send the [SettlementAccountId](../../api/reference/Payments-v2#operation/InitiatePayment!path=initiation/creditor/8/SettlementAccountId&t=request) of the sub-TPP in the [POST /v2/payments](../../api/reference/Payments-v2#operation/InitiatePayment) request.

b.  **TPP -> Token.io** - The TPP sends the initial credentials fields with the [POST /v2/payments](../../api/reference/Payments-v2#operation/InitiatePayment) request in the [initialEmbeddedAuth](../../api/reference/Payments-v2#operation/InitiatePayment!path=initialEmbeddedAuth&t=request) field.

c.  **Token.io -> TPP** - Token.io generates a response to the payment initiation request.

If you're subscribed to webhooks, Token.io sends the payment status in a webhook every time a payment is created or updated.

See [Webhooks](./sip-v2-webhooks#payments-v2) for an example webhook notification.

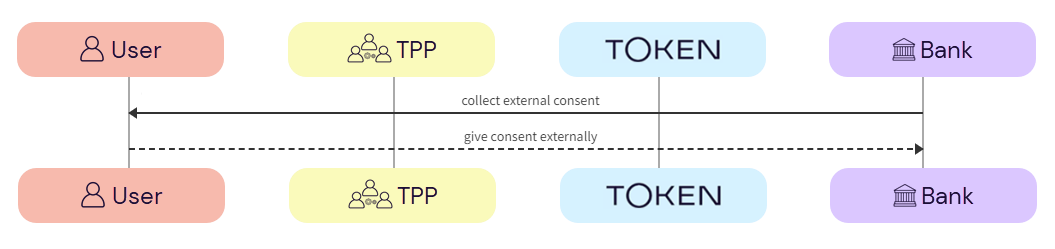

### 5.  Bank captures additional form of authentication

If payment status is `INITIATION_PAYMENT_DECOUPLED_AUTH` then the bank will challenge the user to authenticate themselves outside of the API integration. This could be in the form of an SMS to the user’s registered phone number with the bank, biometrics through a POS device, or a push notification triggered from a bank app.

a.  **Bank -> User** - The bank requests additional authentication from the user, through an external source, *e.g.*, SMS, POS.

b.  **User -> Bank** - The user gives additional authentication credentials to the bank via an external source.

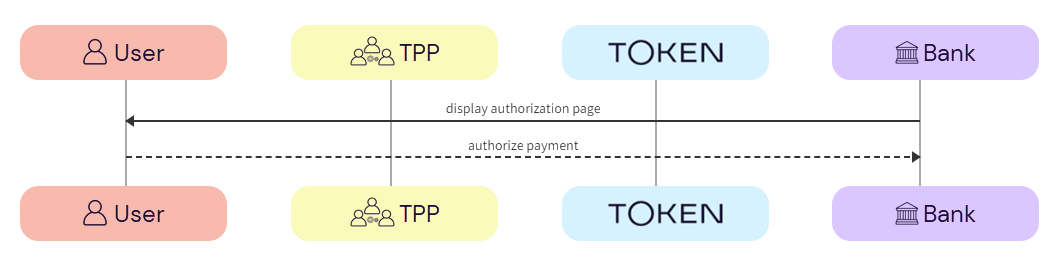

### 6.  User completes authorization with bank

The user completes authorization with the bank.

a.  **Bank -> User** - The bank displays the authorization page to the user.

b.  **User -> Bank** - The user authorizes the payment with the bank.

### 7.  TPP consumes callback

The TPP consumes the Token.io callback.

a.  **Token.io -> TPP** - The TPP consumes the [Token.io callback](./sip-v2-api-callback).

If TPP callback is in use, refer to [TPP callback](payments-v2-considerations.htm#TPP_callback) for more details.

### 8.  TPP receives payment status

Token.io recommends that TPPs subscribe to webhooks to receive payment status updates. As a fallback, TPPs can also poll Token.io for the current status of an initiated payment request.

a.  **Token.io -> TPP** - Token.io sends the payment status to the TPP in a webhook.

See[Webhooks](./sip-v2-webhooks#payments-v2) for an example webhook notification.

b.  **TPP -> Token.io** - The TPP checks the status with Token.io with the [GET /v2/payments/{paymentId}](../../api/reference/Payments-v2#operation/GetPayment) request.

c.  **Token.io -> TPP** - Token.io confirms the payment status with the [GET /v2/payments/{paymentId}](../../api/reference/Payments-v2#operation/GetPayment) response.

If you're using Settlement accounts and the payment initiation request is successful, once the payment has been reconciled, the status will be `SETTLEMENT_COMPLETED`. Depending on the payment rail used, this can take a while.

If you're not using Settlement accounts, the status will be `INITIATION_COMPLETED`, but this doesn't guarantee that the payment has been settled.

If the status is non-final, *e.g.*, `INITIATION_PROCESSING`, wait for additional webhooks to be sent. If the webhook is not received, use a polling call every 120 mins.

The recommended maximum polling time is 30 days. If the bank doesn't update the status, the status will change to `INITIATION_NO_FINAL_STATUS_AVAILABLE` after 30 days.

See [HTTP errors](../../integration-considerations/api-basics#HTTP_errors) for information on HTTP error status codes.
