This section describes the API integration where the TPP owns the full user experience. We recommend that TPPs use webhooks to receive notification of the payment status.
See the Token.io API reference for details of the following endpoints:
Then use our Launchpad to test them.

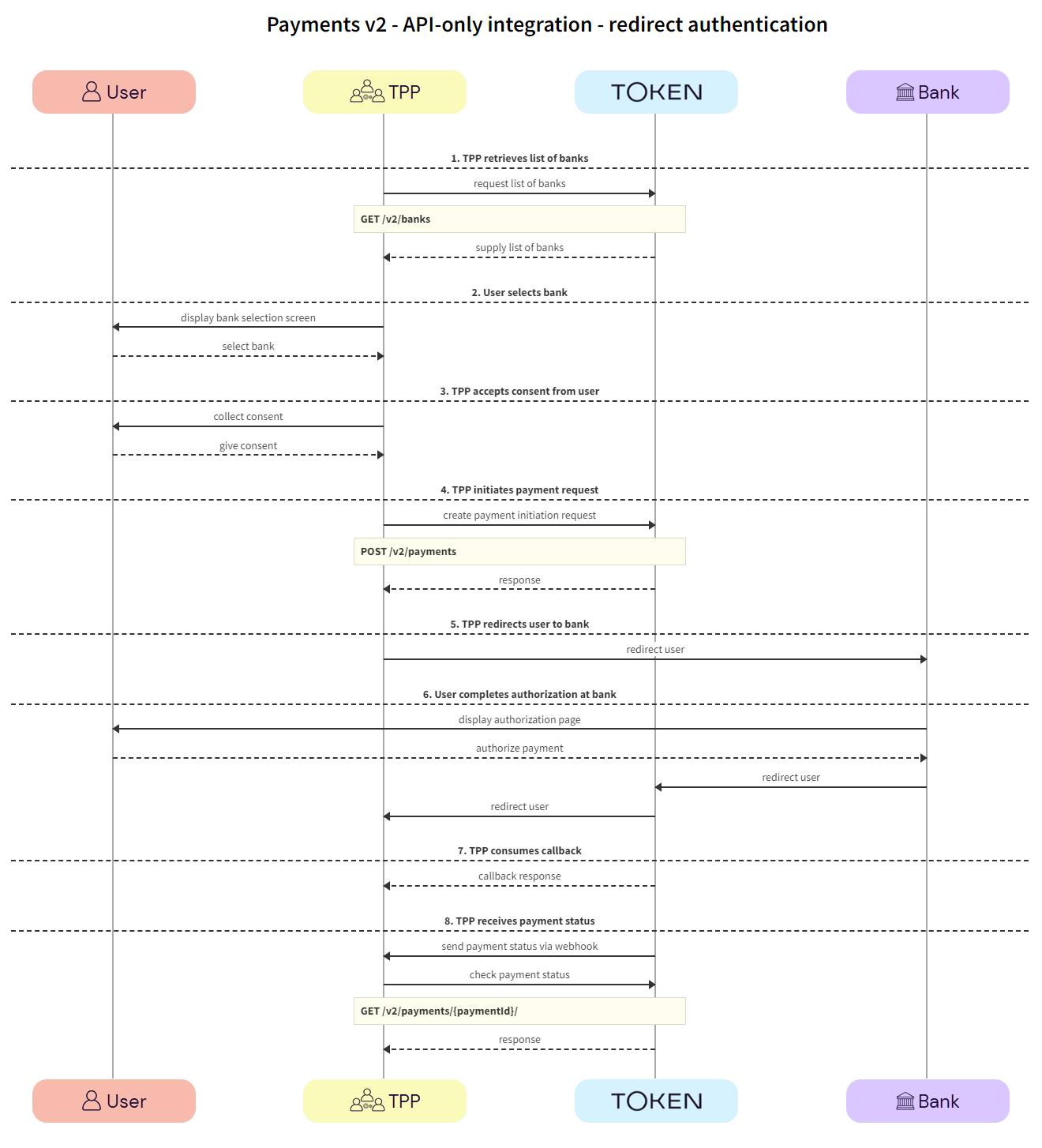

Click the image on the right to view a simplified swim lane diagram of the integration flow.
Details of the steps within the integration flow are shown below.
TPPs retrieve the list of available banks using the GET /v2/banks call.
We recommend that this step is performed once daily, outside any payment initiation, e.g., at 11pm UTC, and that the result is cached.
In the GET /v2/banks request, there are numerous filtering criteria you can add as parameters to narrow your query. As a minimum, you should filter by your member ID.
See Mandatory fields for information on which fields must be provided for a given bank to accept a payment initiation request.
a. TPP -> Token.io - The TPP requests the list of banks from Token.io.
b. Token.io -> TPP - Token.io supplies the list of banks to the TPP.
The user selects the bank.
a. TPP -> User - The TPP displays the bank selection screen.
b. User -> TPP - The user selects the bank.
The TPP accepts consent from the user. For more information see User consent collection.
a. TPP -> User - The TPP initiates consent acceptance from the user.
b. User -> TPP - The user gives consent to the TPP.
The TPP initiates the payment request with Token.io using the POST /v2/payments call. Token.io responds by acknowledging the details of the request, and providing the details for the next step, which in most cases includes a redirect URL to the bank.

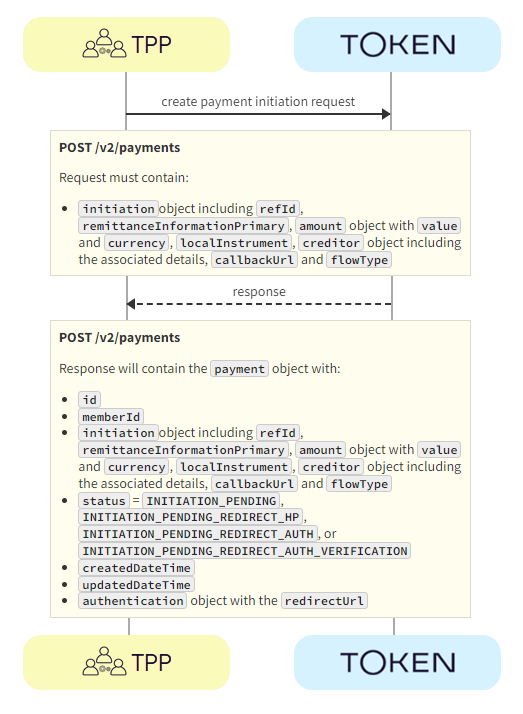

a. TPP -> Token.io - The TPP creates the payment initiation request using the POST /v2/payments call.
If you're using Settlement accounts and you're an unregulated TPP, you'll always need to send the SettlementAccountId of the sub-TPP in the POST /v2/payments request.
b. Token.io -> TPP - Token.io generates a response to the payment initiation request.
If you're subscribed to webhooks, Token.io sends the payment status in a webhook every time a payment is created or updated.
See Webhooks for an example webhook notification.
The POST /v2/payments call includes the next steps to be taken, which in most cases will include a redirect URL to the bank in the response.

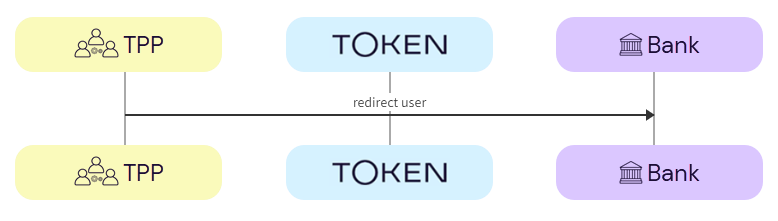

a. TPP -> Bank - The TPP redirects the user to the bank using the redirectUrl returned by Token.io in the response.
The user completes authorization with the bank and is then redirected to the TPP via Token.io.

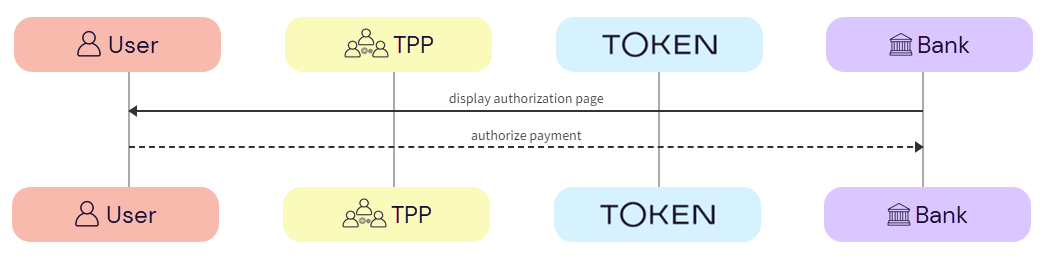

a. Bank -> User - The bank displays the authorization page to the user.
b. User -> Bank - The user authorizes the payment with the bank.
c. Bank -> Token.io - The bank redirects the user to Token.io.
d. Token.io -> TPP - Token.io redirects the user to the TPP.
The TPP consumes the Token.io callback.
a. Token.io -> TPP - The TPP consumes the Token.io callback.
If TPP callback is in use, refer to [TPP callback](payments-v2-considerations.htm#TPP_callback) for more details.
Token.io recommends that TPPs subscribe to webhooks to receive payment status updates. As a fallback, TPPs can also poll Token.io for the current status of an initiated payment request.
a. Token.io -> TPP - Token.io sends the payment status to the TPP in a webhook.
See Webhooks for an example webhook notification.
b. TPP -> Token.io - The TPP checks the status with Token.io with the GET /v2/payments/{paymentId} request.
c. Token.io -> TPP - Token.io confirms the payment status with the GET /v2/payments/{paymentId} response.
If you're using Settlement accounts and the payment initiation request is successful, once the payment has been reconciled, the status will be SETTLEMENT_COMPLETED. Depending on the payment rail used, this can take a while.
If you're not using Settlement accounts, the status will be INITIATION_COMPLETED, but this doesn't guarantee that the payment has been settled.
If the status is non-final, e.g., INITIATION_PROCESSING, wait for additional webhooks to be sent. If the webhook is not received, use a polling call every 120 mins.
The recommended maximum polling time is 30 days. If the bank doesn't update the status, the status will change to INITIATION_NO_FINAL_STATUS_AVAILABLE after 30 days.
See HTTP errors for information on HTTP error status codes.
